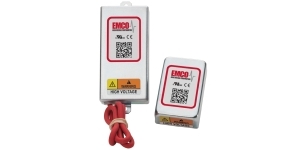

C series
Output up to 8kV 1W
The C Series is a line of miniature, regulated high voltage power supplies featuring excellent stability.
The output voltage is programmable via a 0 to +5 volt control voltage. Temperature drift is typically less than 50ppm/°C. These modules exhibit very low ripple, noise, and EMI/RFI by utilizing a quasi-sinewave oscillator, shielded transformer, excellent filtering techniques and an isolated steel enclosure featuring a separate grounding pin.
An externally accessible potentiometer provides adjustable gain trim allowing for individual calibration of units.
Positive and negative outputs are standard.
For 10kV output, see the CB series.
Specifications:
- Input Voltage: 11.5VDC to 16VDC
- Input Current: See Table
- Control Voltage: 0VDC to +5VDC, <100 µA
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -20°C to +90°C
- Termal Shock Limit: 1°C /10s
- Case Sizes LxWxH (mm):
A: 35.6 x 27.9 x 12.7
B: 44.5 x 27.9 x 12.7
C: 53.3 x 27.9 x 12.7
D: 63.5 x 31.7 x 15.2
Features:
- Low Ripple
- Miniature Size
- Regulated, 0% to 100% Programmable Output
- High Stability, Typically <50ppm/°C
- Wide Input Voltage Range, 11.5VDC to 16VDC
- Very Low EMI/RFI
- Steel Case With Isolated Case Ground
- External Gain Adjustment
- UL94-V0 Compliant Epoxy
Options:
-R RoHS compliant
A Low Outgassing Epoxy
(NASA approved per ASTM E-595-93)
| MODEL | OUTPUT VOLTAGE | OUTPUT CURRENT | RIPPLE | INPUT CURRENT | REGULATION | CASE | |||
| NO LOAD | FULL LOAD | NO LOAD | FULL LOAD | LOAD 0% to 100% | LINE 11.5V to 16.0V | ||||
| C01 | 0 to 100V | 0 to 10mA | <0.03% | <0.75% | <8mA | <250mA | <0.10% | <0.10% | A |
| C02 | 0 to 200V | 0 to 5mA | <0.02% | <0.05% | <15mA | <225mA | <0.10% | <0.10% | |
| C02N | 0 to -200V | 0 to 5mA | <0.02% | <0.05% | <10mA | <225mA | <0.10% | <1.00% | |
| C03 | 0 to 300V | 0 to 3.3mA | <0.0025% | <0.03% | <15mA | <200mA | <0.10% | <0.10% | |
| C05 | 0 to 500V | 0 to 2mA | <0.002% | <0.004% | <20mA | <150mA | <0.07% | <0.10% | |
| C05N | 0 to -500V | 0 to 2mA | <0.005% | <0.005% | <25mA | <185mA | <0.50% | <0.50% | |
| C06 | 0 to 600V | 0 to 1.67mA | <0.001% | <0.003% | <30mA | <150mA | <0.10% | <0.10% | |
| C06N | 0 to -600V | 0 to 1.67mA | <0.007% | <0.003% | <30mA | <185mA | <0.75% | <0.75% | |
| C10 | 0 to 1000V | 0 to 1mA | <0.004% | <0.005% | <50mA | <150mA | <0.30% | <0.30% | |
| C10N | 0 to -1000V | 0 to 1mA | <0.001% | <0.002% | <35mA | <185mA | <0.50% | <0.30% | |
| C12 | 0 to 1200V | 0 to 1mA | <0.002% | <0.004% | <35mA | <170mA | <0.10% | <0.10% | |
| C12N | 0 to -1200V | 0 to 1mA | <0.002% | <0.003% | <50mA | <190mA | <0.175% | <0.10% | |
| C15 | 0 to 1500V | 0 to 0.67mA | <0.001% | <0.002% | <50mA | <150mA | <0.10% | <0.10% | |
| C15N | 0 to -1500V | 0 to 0.67mA | <0.001% | <0.002% | <60mA | <185mA | <0.20% | <0.20% | |
| C20 | 0 to 2000V | 0 to 0.5mA | <0.001% | <0.002% | <50mA | <150mA | <0.15% | <0.10% | |
| C20N | 0 to -2000V | 0 to 0.5mA | <0.002% | <0.002% | <70mA | <190mA | <0.15% | <0.10% | |
| C25 | 0 to 2500V | 0 to 0.4mA | <0.025% | <0.10% | <40mA | <150mA | <0.30% | <0.20% | B |
| C25N | 0 to -2500V | 0 to 0.4mA | <0.02% | <0.20% | <50mA | <185mA | <0.50% | <0.20% | |
| C30 | 0 to 3000V | 0 to 0.33mA | <0.02% | <0.10% | <60mA | <180mA | <0.30% | <0.05% | |
| C30N | 0 to -3000V | 0 to 0.33mA | <0.02% | <0.20% | <75mA | <200mA | <0.30% | <0.075% | |
| C40 | 0 to 4000V | 0 to 0.25mA | <0.025% | <0.10% | <70mA | <150mA | <0.25% | <0.20% | |
| C40N | 0 to -4000V | 0 to 0.25mA | <0.03% | <0.10% | <85mA | <200mA | <0.20% | <0.10% | |
| C50 | 0 to 5000V | 0 to 0.200mA | <0.1% | <0.10% | <80mA | <200mA | <0.35% | <0.10% | C |
| C50N | 0 to -5000V | 0 to 0.200mA | <0.1% | <0.10% | <80mA | <200mA | <0.25% | <0.10% | |
| C60 | 0 to 6000V | 0 to 0.166mA | <0.1% | <0.10% | <100mA | <200mA | <0.25% | <0.10% | |
| C60N | 0 to -6000V | 0 to 0.166mA | <0.1% | <0.10% | <100mA | <225mA | <0.25% | <0.15% | |
| C80 | 0 to 8000V | 0 to 0.125mA | <0.2% | <0.20% | <100mA | <250mA | <0.75% | <0.15% | D |
| C80N | 0 to -8000V | 0 to 0.125mA | <0.2% | <0.20% | <100mA | <250mA | <0.75% | <0.25% | |
